DURAGO
BR34101

第三方数据DURAGO : BR34101

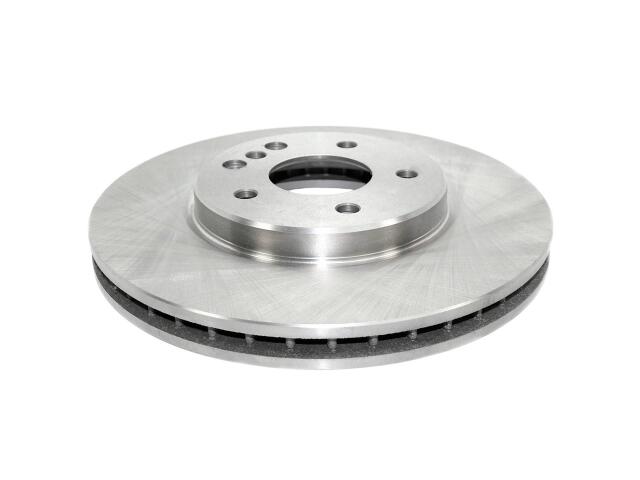

Rotor
DURAGO : BR34101

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.64
Center Hole Diameter (MM): 67
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 1
Discard Thickness (MM): 25.4
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.41
Mounting Bolt Hole Circle Diameter (MM): 112
Mounting Bolt Hole Diameter (IN): 0.52
Mounting Bolt Hole Diameter (MM): 13.3
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 1.08
Nominal Thickness (MM): 27.5
Outside Diameter (IN): 11.81
Outside Diameter (MM): 300
Overall Height (IN): 1.83
Overall Height (MM): 46.5
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

CHRYSLER (1)

MERCEDES-BENZ (8)

C240 (1)

C280 (1)

SLK280 (1)

SLK300 (1)

C320 (1)

CLK320 (1)

C350 (1)

CLK350 (1)

OE号码

品牌	号码
OE	AX3410*
OE	34101G:*

品牌	号码
OE	34101*
OE	AX34101:*

品牌	号码
OE	12557*
