DURAGO
BR3233

第三方数据DURAGO : BR3233

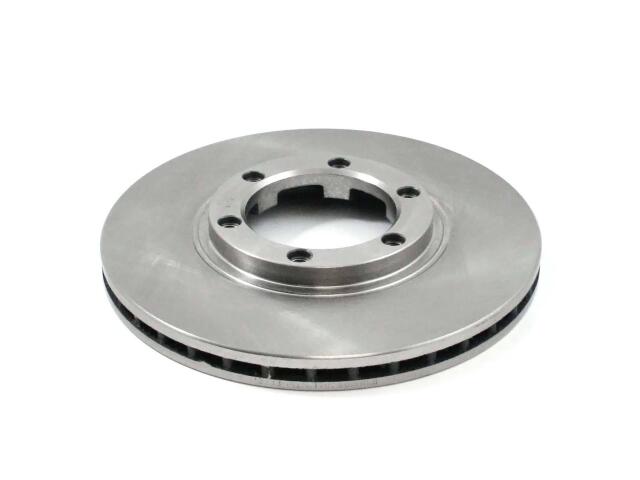

Rotor
DURAGO : BR3233

Abs Tone Ring Included: No
Bolt Size (MM): M12 x 1.25
Center Hole Diameter (IN): 3.46
Center Hole Diameter (MM): 88
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.81
Discard Thickness (MM): 20.6
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.29
Mounting Bolt Hole Circle Diameter (MM): 109
Mounting Bolt Hole Quantity: 6
Nominal Thickness (IN): 0.87
Nominal Thickness (MM): 22
Outside Diameter (IN): 10.12
Outside Diameter (MM): 257
Overall Height (IN): 1.42
Overall Height (MM): 36
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

CHEVROLET (1)

OE号码

品牌	号码
OE	AX323*

品牌	号码
OE	6180*
