DURAGO
BR31328

第三方数据DURAGO : BR31328

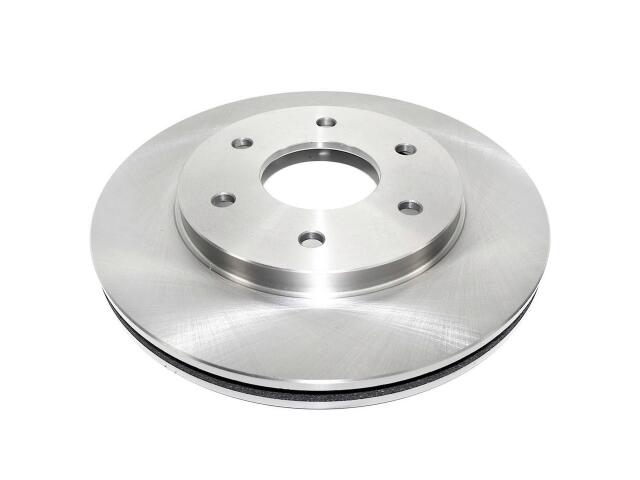

Rotor
DURAGO : BR31328

Abs Tone Ring Included: No
Center Hole Diameter (IN): 3.24
Center Hole Diameter (MM): 82.4
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.96
Discard Thickness (MM): 24.5
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 5.5
Mounting Bolt Hole Circle Diameter (MM): 139.7
Mounting Bolt Hole Diameter (IN): 0.54
Mounting Bolt Hole Diameter (MM): 13.8
Mounting Bolt Hole Quantity: 6
Nominal Thickness (IN): 1.02
Nominal Thickness (MM): 26
Outside Diameter (IN): 12.6
Outside Diameter (MM): 320
Overall Height (IN): 1.68
Overall Height (MM): 42.7
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

NISSAN (2)

INFINITI (1)

OE号码

品牌	号码
OE	AX3132*
OE	31328G:*

品牌	号码
OE	BR31328:*

品牌	号码
OE	3132*
