DURAGO
BR31300

第三方数据DURAGO : BR31300

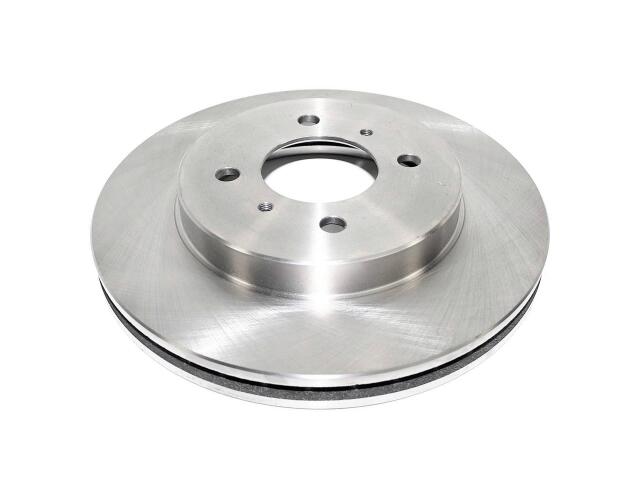

Rotor
DURAGO : BR31300

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.52
Center Hole Diameter (MM): 64
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.88
Discard Thickness (MM): 22.4
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 3.94
Mounting Bolt Hole Circle Diameter (MM): 100
Mounting Bolt Hole Diameter (IN): 0.5
Mounting Bolt Hole Diameter (MM): 12.8
Mounting Bolt Hole Quantity: 4
Nominal Thickness (IN): 0.94
Nominal Thickness (MM): 24
Outside Diameter (IN): 10.08
Outside Diameter (MM): 256
Overall Height (IN): 1.78
Overall Height (MM): 45.1
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

MITSUBISHI (1)

OE号码

品牌	号码
OE	31300G:*
OE	AX3130*

品牌	号码
OE	BR31300:*
OE	AX31300:*

品牌	号码
OE	12607*
