DURAGO
BR3104302

第三方数据DURAGO : BR3104302

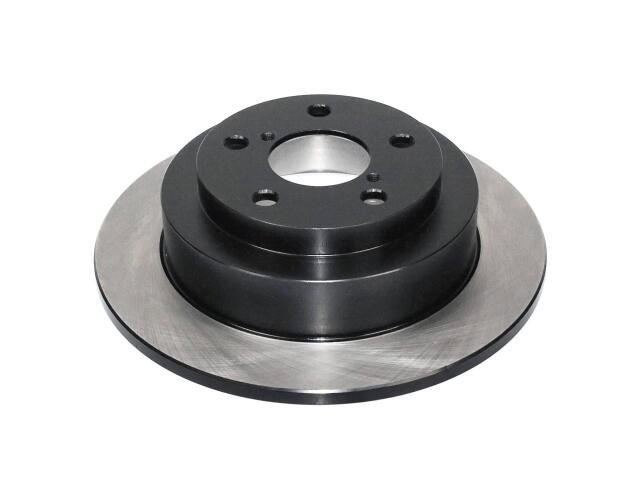

Rotor
DURAGO : BR3104302

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.28
Center Hole Diameter (MM): 58
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Drum-in-Hat
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.33
Discard Thickness (MM): 8.5
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 3.94
Mounting Bolt Hole Circle Diameter (MM): 100
Mounting Bolt Hole Diameter (IN): 0.51
Mounting Bolt Hole Diameter (MM): 12.9
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 0.39
Nominal Thickness (MM): 10
Outside Diameter (IN): 10.45
Outside Diameter (MM): 265.5
Overall Height (IN): 2.59
Overall Height (MM): 65.7
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Solid

适用车型

SUBARU (2)

SAAB (1)

OE号码

品牌	号码
OE	BR31043-0*
