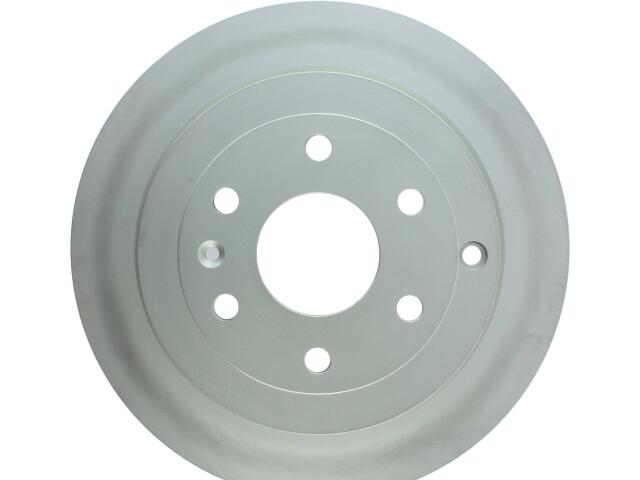

Rotor
CENTRIC : 32066070F

ABS Sensor Ring Included: No
Bolt Circle Diameter (IN): 5.197
Bolt Circle Diameter (MM): 132.000
Disc Finish: Fully Coated
Disc Mounting: Floating / DIH
Discard Thickness (IN): 0.724
Discard Thickness (MM): 18.400
Hat Finish: Coated
Misc Holes: 2
Nominal Thickness (IN): 0.787
Nominal Thickness (MM): 20.000
Outside Diameter (IN): 13.020
Outside Diameter (MM): 330.700
Overall Height (IN): 2.106
Overall Height (MM): 53.500
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth
Vane Style: Straight

适用车型

GMC (1)

参考号

厂商	号码
MAGMA BRAKES	PSR22524*

OE号码

品牌	号码
OE	320.66070*
