CENTRIC
32066051F

第三方数据CENTRIC : 32066051F

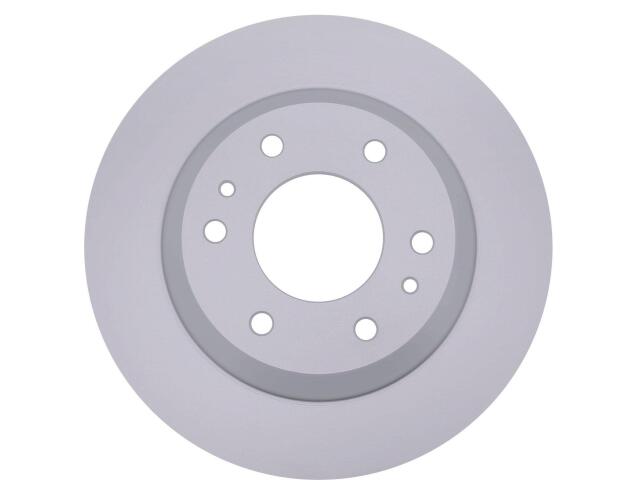

Rotor
CENTRIC : 32066051F

ABS Sensor Ring Included: No
Bolt Circle Diameter (IN): 5.000
Bolt Circle Diameter (MM): 127.000
Disc Finish: Fully Coated
Disc Mounting: Floating
Discard Thickness (IN): 1.083
Discard Thickness (MM): 27.500
Hat Finish: Coated
Misc Holes: 2
Nominal Thickness (IN): 1.150
Nominal Thickness (MM): 29.200
Outside Diameter (IN): 12.008
Outside Diameter (MM): 305.000
Overall Height (IN): 2.150
Overall Height (MM): 54.600
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth
Vane Style: Straight

适用车型

ISUZU (1)

参考号

厂商	号码
MAGMA BRAKES	PSR22522*

OE号码

品牌	号码
OE	320.66051*
