CENTRIC
32066036F

第三方数据CENTRIC : 32066036F

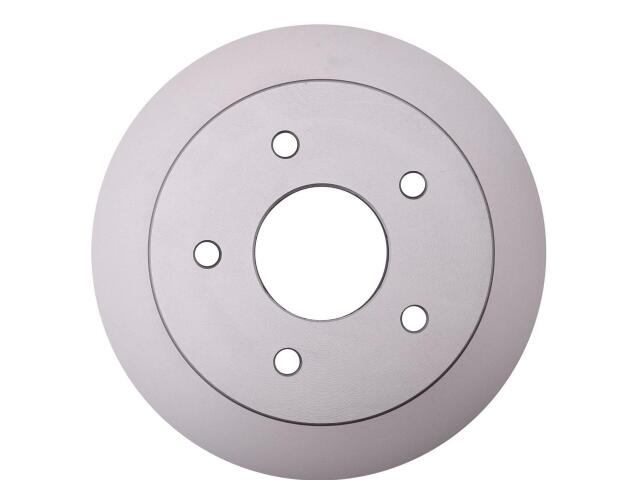

Rotor
CENTRIC : 32066036F

ABS Sensor Ring Included: No
Bolt Circle Diameter (IN): 4.748
Bolt Circle Diameter (MM): 120.600
Disc Finish: Fully Coated
Disc Mounting: Floating / DIH
Discard Thickness (IN): 0.728
Discard Thickness (MM): 18.500
Hat Finish: Coated
Max PB Drum Dia (IN): 7.539
Max PB Drum Dia (MM): 191.500
Nominal Drum Diameter (IN): 7.484
Nominal Drum Diameter (MM): 190.100
Nominal Thickness (IN): 0.787
Nominal Thickness (MM): 20.000
Outside Diameter (IN): 11.614
Outside Diameter (MM): 295.000
Overall Height (IN): 3.740
Overall Height (MM): 95.000
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth
Vane Style: Straight

适用车型

GMC (1)

参考号

厂商	号码
MAGMA BRAKES	PSR22520*

OE号码

品牌	号码
OE	320.66036*
