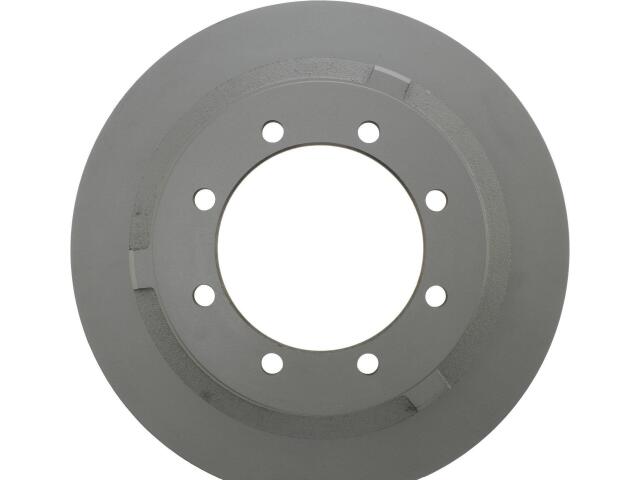

Rotor
CENTRIC : 32065141F

ABS Sensor Ring Included: No
Bolt Circle Diameter (IN): 6.118
Bolt Circle Diameter (MM): 155.400
Disc Finish: Fully Coated
Disc Mounting: Behind the Hub
Discard Thickness (IN): 1.433
Discard Thickness (MM): 36.400
Hat Finish: Coated
Hat ID (IN): 8.870
Hat ID (MM): 225.300
Max PB Drum Dia (IN): 9.102
Max PB Drum Dia (MM): 231.200
Mounting Bolt Hole Quantity: 8
Nominal Drum Diameter (IN): 9.043
Nominal Drum Diameter (MM): 229.700
Nominal Thickness (IN): 1.496
Nominal Thickness (MM): 38.000
OEM Vane Count: 53
Outside Diameter (IN): 14.291
Outside Diameter (MM): 363.000
Overall Height (IN): 4.972
Overall Height (MM): 126.300
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth
Vane Style: Straight

适用车型

FORD (1)

参考号

厂商	号码
AMERIBRAKES	59279*

厂商	号码
MAGMA BRAKES	PSR20730*

OE号码

品牌	号码
OE	320.65141*
