CENTRIC
32065103F

第三方数据CENTRIC : 32065103F

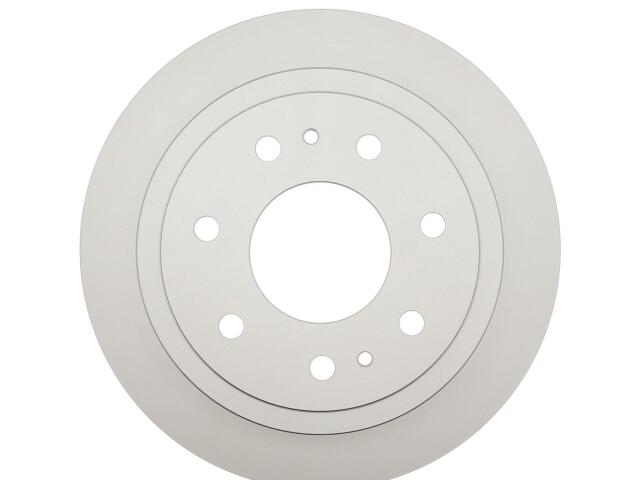

Rotor
CENTRIC : 32065103F

ABS Sensor Ring Included: No
Bolt Circle Diameter (IN): 5.906
Bolt Circle Diameter (MM): 150.000
Disc Finish: Fully Coated
Disc Mounting: Floating / DIH
Discard Thickness (IN): 0.728
Discard Thickness (MM): 18.500
Hat Finish: Coated
Max PB Drum Dia (IN): 9.024
Max PB Drum Dia (MM): 229.200
Misc Holes: 2
Nominal Drum Diameter (IN): 8.992
Nominal Drum Diameter (MM): 228.400
Nominal Thickness (IN): 0.787
Nominal Thickness (MM): 20.000
Outside Diameter (IN): 13.701
Outside Diameter (MM): 348.000
Overall Height (IN): 3.386
Overall Height (MM): 86.000
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth
Vane Style: Straight

适用车型

FORD (1)

OE号码

品牌	号码
OE	320.65103*
