CENTRIC
32065092F

第三方数据CENTRIC : 32065092F

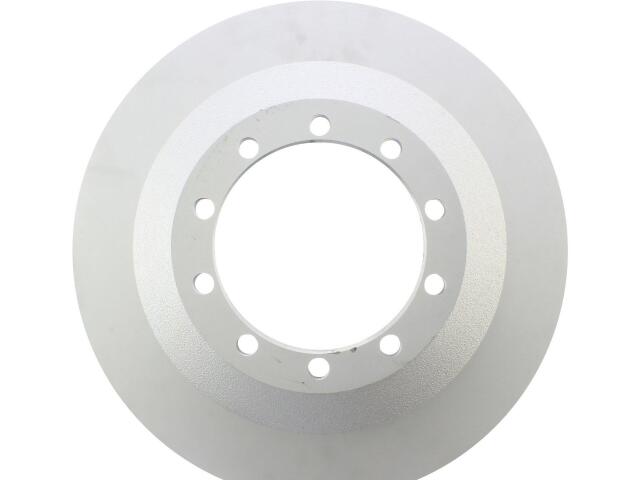

Rotor
CENTRIC : 32065092F

ABS Sensor Ring Included: Yes
Bolt Circle Diameter (IN): 6.425
Bolt Circle Diameter (MM): 163.200
Disc Finish: Fully Coated
Disc Mounting: Behind the Hub
Discard Thickness (IN): 1.417
Discard Thickness (MM): 36.000
Hat Finish: Coated
Max PB Drum Dia (IN): 9.575
Max PB Drum Dia (MM): 243.200
Mounting Bolt Hole Quantity: 10
Nominal Drum Diameter (IN): 9.535
Nominal Drum Diameter (MM): 242.200
Nominal Thickness (IN): 1.500
Nominal Thickness (MM): 38.100
Outside Diameter (IN): 15.551
Outside Diameter (MM): 395.000
Overall Height (IN): 4.874
Overall Height (MM): 123.800
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth
Vane Style: Pillar

适用车型

FORD (2)

OE号码

品牌	号码
OE	320.65092*
