CENTRIC
32062147F

第三方数据CENTRIC : 32062147F

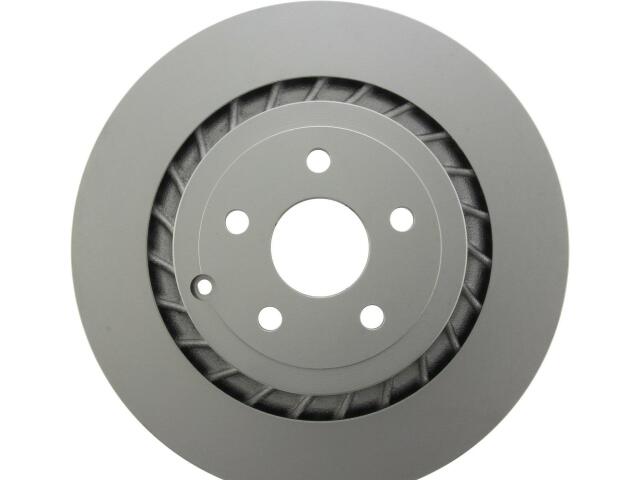

Rotor
CENTRIC : 32062147F

ABS Sensor Ring Included: No
Bolt Circle Diameter (IN): 4.724
Bolt Circle Diameter (MM): 120.000
Disc Finish: Fully Coated
Disc Mounting: Floating / DIH
Discard Thickness (IN): 1.024
Discard Thickness (MM): 26.000
Hat Finish: Coated
Hat ID (IN): 8.035
Hat ID (MM): 204.100
Misc Holes: 1
Nominal Thickness (IN): 1.106
Nominal Thickness (MM): 28.100
OEM Vane Count: 46
Outside Diameter (IN): 14.173
Outside Diameter (MM): 360.000
Overall Height (IN): 2.043
Overall Height (MM): 51.900
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth
Vane Style: Curved

适用车型

CHEVROLET (1)

OE号码

品牌	号码
OE	320.62147*
