CENTRIC
32062130F

第三方数据CENTRIC : 32062130F

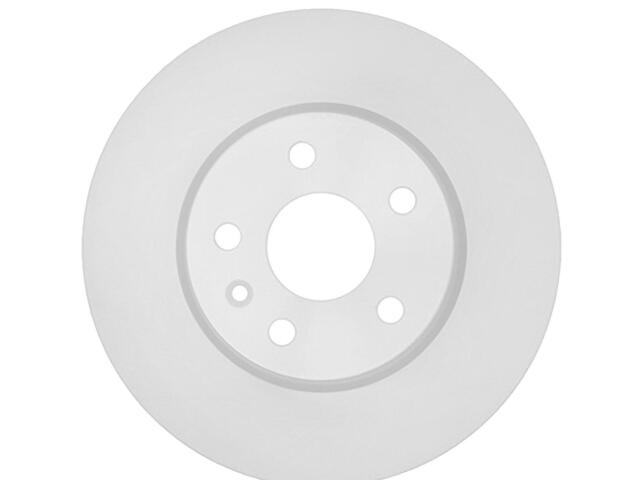

Rotor
CENTRIC : 32062130F

ABS Sensor Ring Included: No
Bolt Circle Diameter (IN): 4.134
Bolt Circle Diameter (MM): 105.000
Disc Finish: Fully Coated
Disc Mounting: Floating
Discard Thickness (IN): 0.906
Discard Thickness (MM): 23.000
Hat Finish: Coated
Hat ID (IN): 5.402
Hat ID (MM): 137.200
Misc Holes: 1
Nominal Thickness (IN): 1.024
Nominal Thickness (MM): 26.000
Outside Diameter (IN): 10.866
Outside Diameter (MM): 276.000
Overall Height (IN): 1.795
Overall Height (MM): 45.600
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth
Vane Style: Straight

适用车型

CHEVROLET (1)

参考号

厂商	号码
MAGMA BRAKES	PSR22313*

OE号码

品牌	号码
OE	320.62130*
