CENTRIC
32062104F

第三方数据CENTRIC : 32062104F

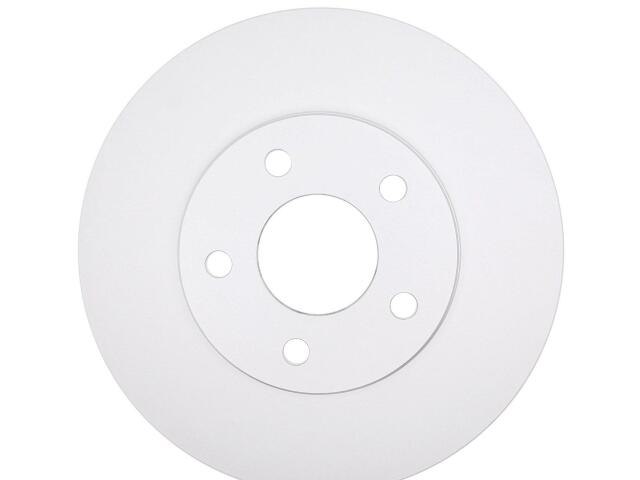

Rotor
CENTRIC : 32062104F

ABS Sensor Ring Included: No
Bolt Circle Diameter (IN): 4.331
Bolt Circle Diameter (MM): 110.000
Disc Finish: Fully Coated
Disc Mounting: Floating
Discard Thickness (IN): 0.906
Discard Thickness (MM): 23.000
Hat Finish: Coated
Nominal Thickness (IN): 0.945
Nominal Thickness (MM): 24.000
Outside Diameter (IN): 11.024
Outside Diameter (MM): 280.000
Overall Height (IN): 1.850
Overall Height (MM): 47.000
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth
Vane Style: Straight

适用车型

PONTIAC (1)

OE号码

品牌	号码
OE	320.62104*
