CENTRIC
32062059F

第三方数据CENTRIC : 32062059F

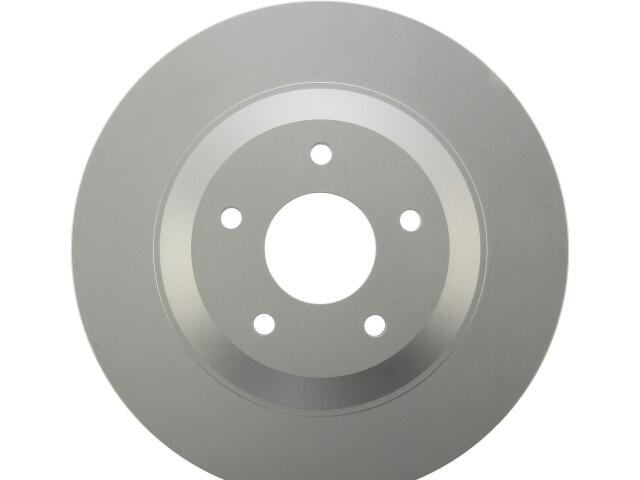

Rotor
CENTRIC : 32062059F

ABS Sensor Ring Included: No
Bolt Circle Diameter (IN): 4.748
Bolt Circle Diameter (MM): 120.600
Disc Finish: Fully Coated
Disc Mounting: Floating
Discard Thickness (IN): 1.193
Discard Thickness (MM): 30.300
Hat Finish: Coated
Nominal Thickness (IN): 1.264
Nominal Thickness (MM): 32.100
Outside Diameter (IN): 12.791
Outside Diameter (MM): 324.900
Overall Height (IN): 1.787
Overall Height (MM): 45.400
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth
Vane Style: Curved

适用车型

CADILLAC (1)

参考号

厂商	号码
MAGMA BRAKES	PSR22306*

OE号码

品牌	号码
OE	320.62059*
