CENTRIC
32061095F

第三方数据CENTRIC : 32061095F

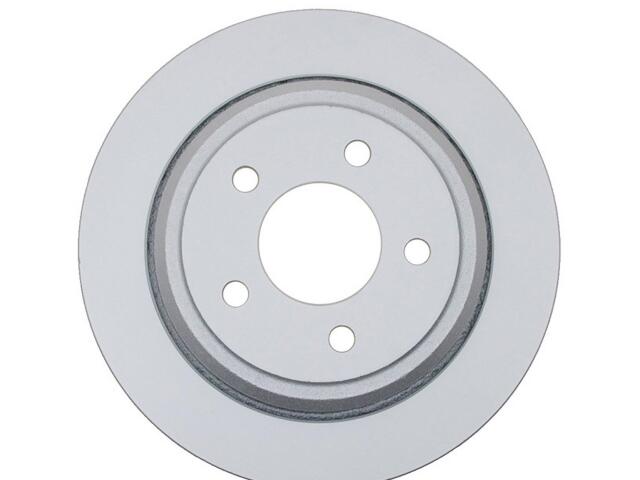

Rotor
CENTRIC : 32061095F

ABS Sensor Ring Included: No
Bolt Circle Diameter (IN): 4.500
Bolt Circle Diameter (MM): 114.300
Disc Finish: Fully Coated
Disc Mounting: Floating / DIH
Discard Thickness (IN): 0.709
Discard Thickness (MM): 18.000
Hat Finish: Coated
Hat ID (IN): 6.740
Hat ID (MM): 171.200
Max PB Drum Dia (IN): 7.276
Max PB Drum Dia (MM): 184.800
Nominal Drum Diameter (IN): 7.240
Nominal Drum Diameter (MM): 183.900
Nominal Thickness (IN): 0.748
Nominal Thickness (MM): 19.000
Outside Diameter (IN): 11.618
Outside Diameter (MM): 295.100
Overall Height (IN): 2.433
Overall Height (MM): 61.800
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth
Vane Style: Straight

适用车型

MAZDA (1)

OE号码

品牌	号码
OE	320.61095*
