CENTRIC
32058010F

第三方数据CENTRIC : 32058010F

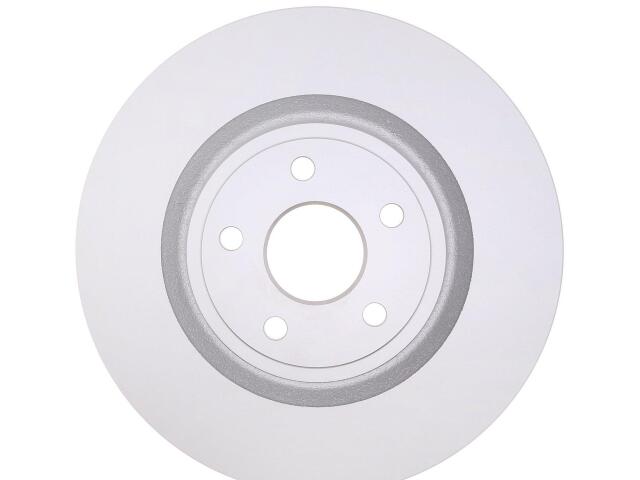

Rotor
CENTRIC : 32058010F

ABS Sensor Ring Included: No
Bolt Circle Diameter (IN): 5.000
Bolt Circle Diameter (MM): 127.000
Disc Finish: Fully Coated
Disc Mounting: Floating
Discard Thickness (IN): 1.260
Discard Thickness (MM): 32.000
Hat Finish: Coated
Nominal Thickness (IN): 1.339
Nominal Thickness (MM): 34.000
Outside Diameter (IN): 14.961
Outside Diameter (MM): 380.000
Overall Height (IN): 2.161
Overall Height (MM): 54.900
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth
Vane Style: Pillar

适用车型

DODGE (1)

参考号

厂商	号码
MAGMA BRAKES	PSR14520*

OE号码

品牌	号码
OE	320.58010*
