CENTRIC
32058002F

第三方数据CENTRIC : 32058002F

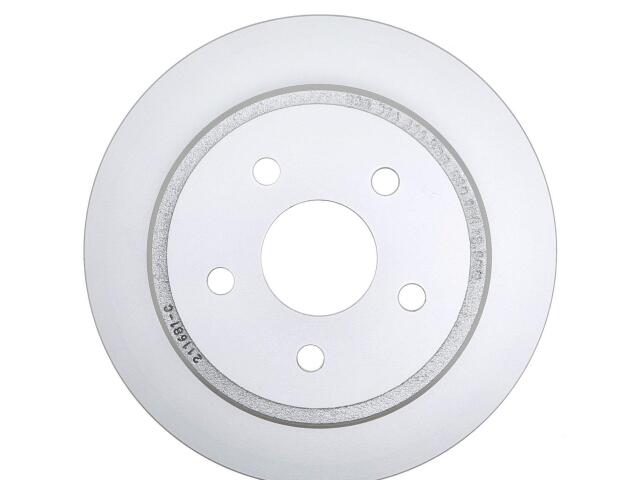

Rotor
CENTRIC : 32058002F

ABS Sensor Ring Included: No
Bolt Circle Diameter (IN): 4.992
Bolt Circle Diameter (MM): 126.800
Disc Finish: Fully Coated
Disc Mounting: Floating / DIH
Discard Thickness (IN): 0.492
Discard Thickness (MM): 12.500
Hat Finish: Coated
Max PB Drum Dia (IN): 8.110
Max PB Drum Dia (MM): 206.000
Nominal Drum Diameter (IN): 8.071
Nominal Drum Diameter (MM): 205.000
Nominal Thickness (IN): 0.555
Nominal Thickness (MM): 14.100
Outside Diameter (IN): 12.598
Outside Diameter (MM): 320.000
Overall Height (IN): 2.614
Overall Height (MM): 66.400
Solid Or Vented Type Rotor: Solid
Surface Type: Smooth

适用车型

JEEP (1)

参考号

厂商	号码
MAGMA BRAKES	PSR14517*

OE号码

品牌	号码
OE	320.58002*
