CENTRIC
32051070F

第三方数据CENTRIC : 32051070F

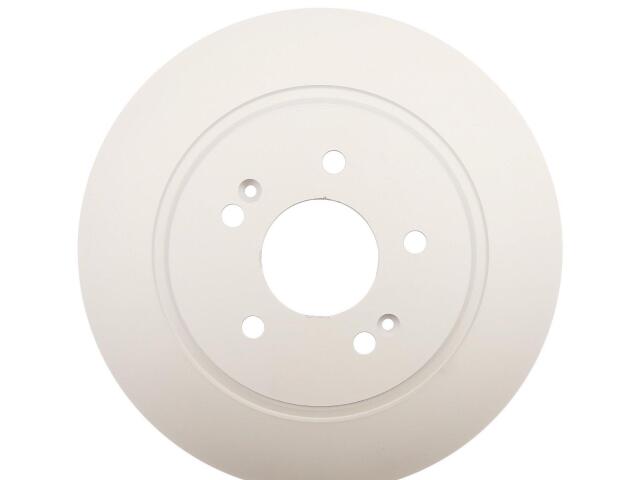

Rotor
CENTRIC : 32051070F

ABS Sensor Ring Included: No
Bolt Circle Diameter (IN): 4.500
Bolt Circle Diameter (MM): 114.300
Disc Finish: Fully Coated
Disc Mounting: Floating
Discard Thickness (IN): 0.354
Discard Thickness (MM): 9.000
Hat Finish: Coated
Hat ID (IN): 6.571
Hat ID (MM): 166.910
Misc Holes: 3
Nominal Thickness (IN): 0.433
Nominal Thickness (MM): 11.000
Outside Diameter (IN): 12.012
Outside Diameter (MM): 305.100
Overall Height (IN): 1.260
Overall Height (MM): 32.000
Solid Or Vented Type Rotor: Solid
Surface Type: Smooth

适用车型

HYUNDAI (1)

KIA (1)

OE号码

品牌	号码
OE	320.51070*
