CENTRIC
32051051F

第三方数据CENTRIC : 32051051F

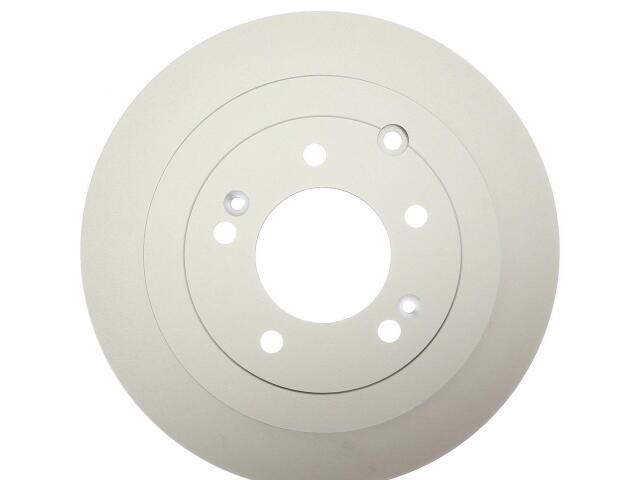

Rotor
CENTRIC : 32051051F

ABS Sensor Ring Included: No
Bolt Circle Diameter (IN): 4.500
Bolt Circle Diameter (MM): 114.300
Disc Finish: Fully Coated
Disc Mounting: Floating / DIH
Discard Thickness (IN): 0.331
Discard Thickness (MM): 8.400
Hat Finish: Coated
Hat ID (IN): 7.362
Hat ID (MM): 187.000
Max PB Drum Dia (IN): 7.520
Max PB Drum Dia (MM): 191.000
Misc Holes: 3
Nominal Drum Diameter (IN): 7.472
Nominal Drum Diameter (MM): 189.800
Nominal Thickness (IN): 0.394
Nominal Thickness (MM): 10.000
Outside Diameter (IN): 11.890
Outside Diameter (MM): 302.000
Overall Height (IN): 2.146
Overall Height (MM): 54.500
Solid Or Vented Type Rotor: Solid
Surface Type: Smooth

适用车型

HYUNDAI (1)

KIA (1)

SPORTAGE (3)

2.0L L4 (6)

2.0L L4 Turbocharged (6)

2.4L L4 (6)

OE号码

品牌	号码
OE	320.51051*
