CENTRIC
32049010F

第三方数据CENTRIC : 32049010F

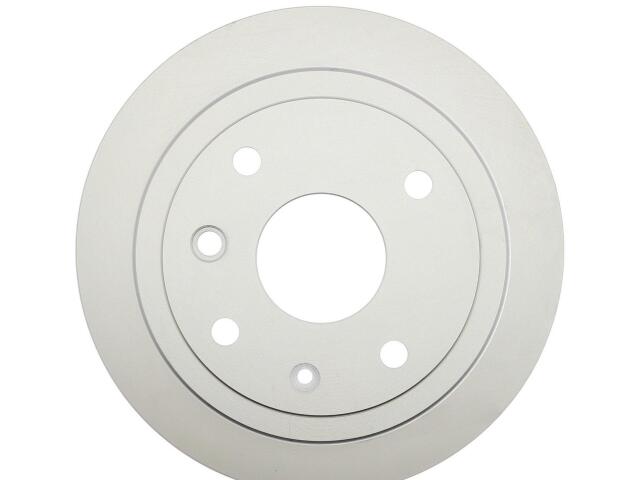

Rotor
CENTRIC : 32049010F

ABS Sensor Ring Included: No
Bolt Circle Diameter (IN): 4.500
Bolt Circle Diameter (MM): 114.300
Disc Finish: Fully Coated
Disc Mounting: Floating / DIH
Discard Thickness (IN): 0.394
Discard Thickness (MM): 10.000
Hat Finish: Coated
Misc Holes: 2
Nominal Drum Diameter (IN): 6.605
Nominal Drum Diameter (MM): 167.770
Nominal Thickness (IN): 0.413
Nominal Thickness (MM): 10.500
Outside Diameter (IN): 10.150
Outside Diameter (MM): 257.800
Overall Height (IN): 2.264
Overall Height (MM): 57.500
Solid Or Vented Type Rotor: Solid
Surface Type: Smooth
Vane Style: Straight

适用车型

CHEVROLET (1)

OE号码

品牌	号码
OE	320.49010*
