CENTRIC
32047037F

第三方数据CENTRIC : 32047037F

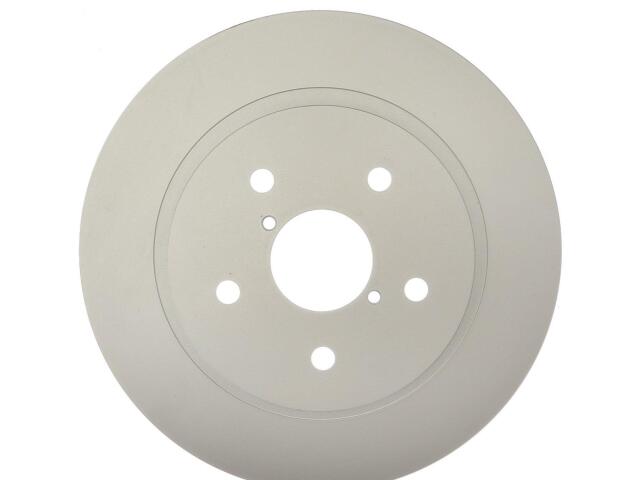

Rotor
CENTRIC : 32047037F

ABS Sensor Ring Included: No
Bolt Circle Diameter (IN): 4.496
Bolt Circle Diameter (MM): 114.200
Disc Finish: Fully Coated
Disc Mounting: Floating
Discard Thickness (IN): 0.591
Discard Thickness (MM): 15.000
Hat Finish: Coated
Hat ID (IN): 6.543
Hat ID (MM): 166.200
Misc Holes: 2
Nominal Thickness (IN): 0.669
Nominal Thickness (MM): 17.000
OEM Vane Count: 46
Outside Diameter (IN): 11.799
Outside Diameter (MM): 299.700
Overall Height (IN): 1.831
Overall Height (MM): 46.500
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth
Vane Style: Straight

适用车型

SUBARU (2)

参考号

厂商	号码
MAGMA BRAKES	PSR52302*

OE号码

品牌	号码
OE	320.47037*
