CENTRIC
32047033F

第三方数据CENTRIC : 32047033F

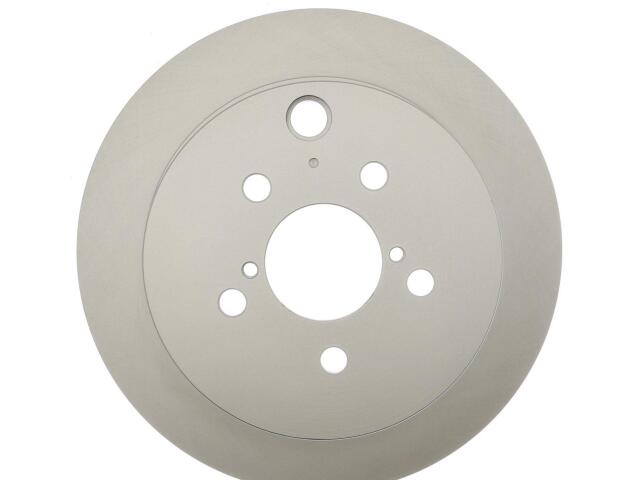

Rotor
CENTRIC : 32047033F

ABS Sensor Ring Included: No
Bolt Circle Diameter (IN): 3.937
Bolt Circle Diameter (MM): 100.000
Disc Finish: Fully Coated
Disc Mounting: Floating / DIH
Discard Thickness (IN): 0.335
Discard Thickness (MM): 8.500
Hat Finish: Coated
Max PB Drum Dia (IN): 6.732
Max PB Drum Dia (MM): 171.000
Misc Holes: 3
Nominal Thickness (IN): 0.394
Nominal Thickness (MM): 10.000
Outside Diameter (IN): 10.772
Outside Diameter (MM): 273.600
Overall Height (IN): 2.504
Overall Height (MM): 63.600
Solid Or Vented Type Rotor: Solid
Surface Type: Smooth

适用车型

SUBARU (3)

参考号

厂商	号码
MAGMA BRAKES	PSR52503*

OE号码

品牌	号码
OE	320.47033*
