CENTRIC
32047029F

第三方数据CENTRIC : 32047029F

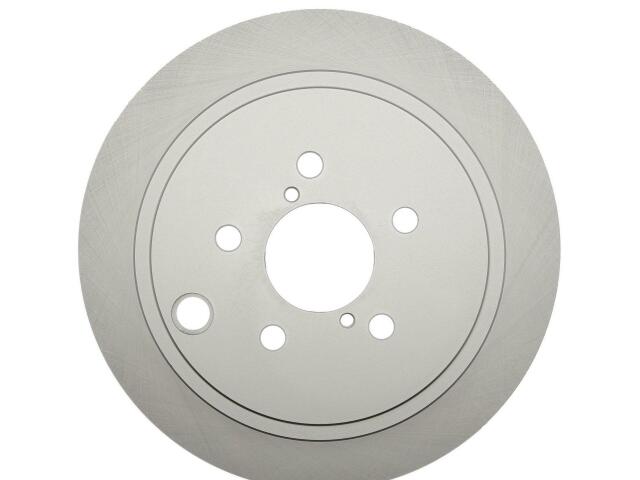

Rotor
CENTRIC : 32047029F

ABS Sensor Ring Included: No
Bolt Circle Diameter (IN): 3.937
Bolt Circle Diameter (MM): 100.000
Disc Finish: Fully Coated
Disc Mounting: Floating / DIH
Discard Thickness (IN): 0.335
Discard Thickness (MM): 8.500
Hat Finish: Coated
Max PB Drum Dia (IN): 7.520
Max PB Drum Dia (MM): 191.000
Misc Holes: 3
Nominal Drum Diameter (IN): 7.480
Nominal Drum Diameter (MM): 190.000
Nominal Thickness (IN): 0.394
Nominal Thickness (MM): 10.000
Outside Diameter (IN): 11.248
Outside Diameter (MM): 285.700
Overall Height (IN): 2.504
Overall Height (MM): 63.600
Solid Or Vented Type Rotor: Solid
Surface Type: Smooth

适用车型

SUBARU (1)

参考号

厂商	号码
MAGMA BRAKES	PSR52503*

OE号码

品牌	号码
OE	320.47029*
