CENTRIC
32047021F

第三方数据CENTRIC : 32047021F

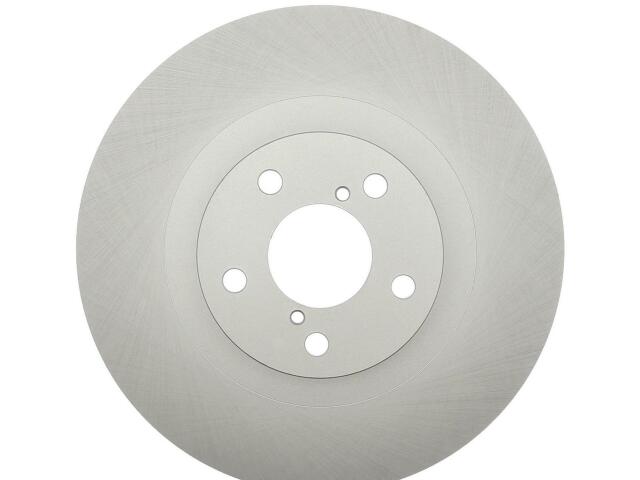

Rotor
CENTRIC : 32047021F

ABS Sensor Ring Included: No
Bolt Circle Diameter (IN): 3.937
Bolt Circle Diameter (MM): 100.000
Disc Finish: Fully Coated
Disc Mounting: Floating
Discard Thickness (IN): 0.866
Discard Thickness (MM): 22.000
Hat Finish: Coated
Hat ID (IN): 5.071
Hat ID (MM): 128.800
Misc Holes: 2
Nominal Thickness (IN): 0.945
Nominal Thickness (MM): 24.000
Outside Diameter (IN): 11.555
Outside Diameter (MM): 293.500
Overall Height (IN): 2.232
Overall Height (MM): 56.700
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth
Vane Style: Straight

适用车型

SUBARU (2)

参考号

厂商	号码
MAGMA BRAKES	PSR52502*

OE号码

品牌	号码
OE	320.47021*
