CENTRIC
32047011F

第三方数据CENTRIC : 32047011F

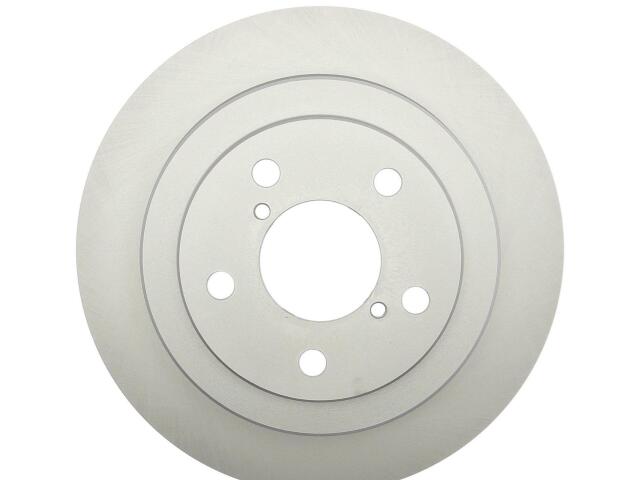

Rotor
CENTRIC : 32047011F

ABS Sensor Ring Included: No
Bolt Circle Diameter (IN): 3.937
Bolt Circle Diameter (MM): 100.000
Disc Finish: Fully Coated
Disc Mounting: Floating / DIH
Discard Thickness (IN): 0.335
Discard Thickness (MM): 8.500
Hat Finish: Coated
Misc Holes: 2
Nominal Drum Diameter (IN): 6.697
Nominal Drum Diameter (MM): 170.100
Nominal Thickness (IN): 0.394
Nominal Thickness (MM): 10.000
Outside Diameter (IN): 10.453
Outside Diameter (MM): 265.500
Overall Height (IN): 2.587
Overall Height (MM): 65.700
Solid Or Vented Type Rotor: Solid
Surface Type: Smooth

适用车型

SAAB (1)

参考号

厂商	号码
MAGMA BRAKES	PSR52502*

OE号码

品牌	号码
OE	320.47011*
