CENTRIC
32042095F

第三方数据CENTRIC : 32042095F

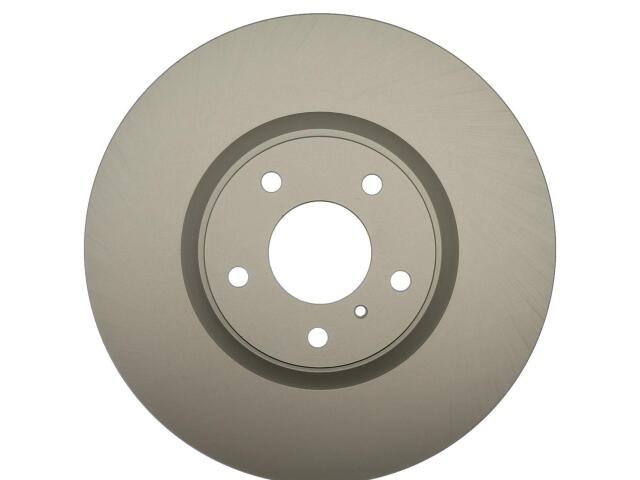

Rotor
CENTRIC : 32042095F

ABS Sensor Ring Included: No
Bolt Circle Diameter (IN): 4.500
Bolt Circle Diameter (MM): 114.300
Disc Finish: Fully Coated
Disc Mounting: Floating
Discard Thickness (IN): 1.181
Discard Thickness (MM): 30.000
Hat Finish: Coated
Misc Holes: 1
Nominal Thickness (IN): 1.260
Nominal Thickness (MM): 32.000
Outside Diameter (IN): 12.992
Outside Diameter (MM): 330.000
Overall Height (IN): 1.937
Overall Height (MM): 49.200
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth
Vane Style: Straight

适用车型

INFINITI (2)

OE号码

品牌	号码
OE	320.42095*
