CENTRIC
32042078F

第三方数据CENTRIC : 32042078F

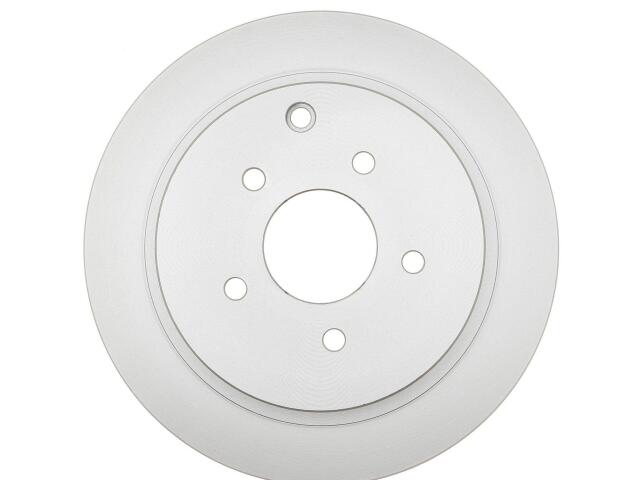

Rotor
CENTRIC : 32042078F

ABS Sensor Ring Included: No
Bolt Circle Diameter (IN): 4.500
Bolt Circle Diameter (MM): 114.300
Disc Finish: Fully Coated
Disc Mounting: Floating / DIH
Discard Thickness (IN): 0.551
Discard Thickness (MM): 14.000
Hat Finish: Coated
Hat ID (IN): 7.476
Hat ID (MM): 189.900
Misc Holes: 1
Nominal Drum Diameter (IN): 7.480
Nominal Drum Diameter (MM): 190.000
Nominal Thickness (IN): 0.630
Nominal Thickness (MM): 16.000
Outside Diameter (IN): 12.110
Outside Diameter (MM): 307.600
Overall Height (IN): 2.445
Overall Height (MM): 62.100
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth
Vane Style: Straight

适用车型

INFINITI (1)

参考号

厂商	号码
MAGMA BRAKES	PSR42509*

OE号码

品牌	号码
OE	320.42078*
