CENTRIC
22767068R

第三方数据CENTRIC : 22767068R

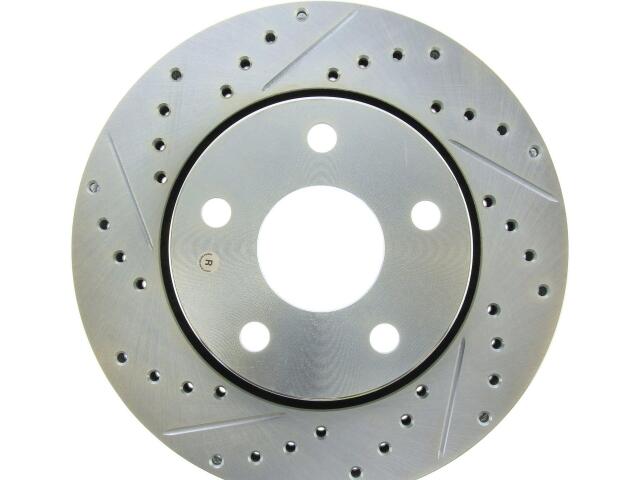

Rotor
CENTRIC : 22767068R

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.839
Center Hole Diameter (MM): 72.100
Disc Mounting: Floating
Discard Thickness (IN): 1.039
Discard Thickness (MM): 26.400
Mounting Bolt Hole Circle Diameter (IN): 5.000
Mounting Bolt Hole Circle Diameter (MM): 127.000
Nominal Thickness (IN): 1.102
Nominal Thickness (MM): 28.000
Outside Diameter (IN): 11.890
Outside Diameter (MM): 302.000
Overall Height (IN): 2.165
Overall Height (MM): 55.000
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.654
Stud/Lug Hole Diameter (MM): 16.600
Stud/Lug Hole Quantity: 5
Surface Type: Slotted X Drilled
Vane Style: Straight

适用车型

JEEP (1)

OE号码

品牌	号码
OE	227.67068*
