CENTRIC
22766041L

第三方数据CENTRIC : 22766041L

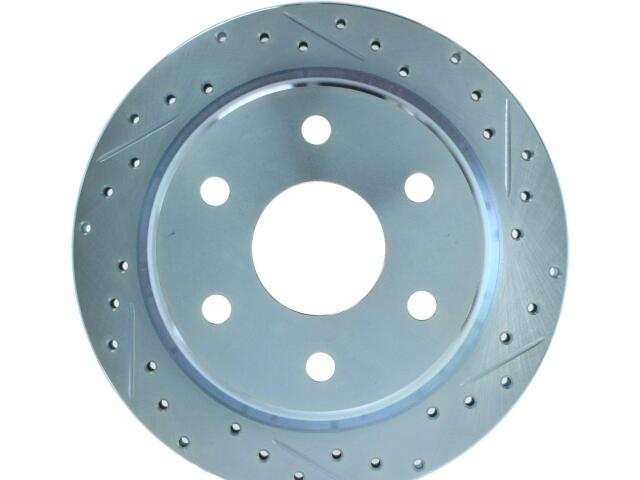

Rotor
CENTRIC : 22766041L

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 3.098
Center Hole Diameter (MM): 78.700
Disc Mounting: Floating / DIH
Discard Thickness (IN): 0.728
Discard Thickness (MM): 18.500
Mounting Bolt Hole Circle Diameter (IN): 5.500
Mounting Bolt Hole Circle Diameter (MM): 139.700
Nominal Drum Diameter (IN): 8.276
Nominal Drum Diameter (MM): 210.200
Nominal Thickness (IN): 0.787
Nominal Thickness (MM): 20.000
Outside Diameter (IN): 12.795
Outside Diameter (MM): 325.000
Overall Height (IN): 3.358
Overall Height (MM): 85.300
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.646
Stud/Lug Hole Diameter (MM): 16.400
Stud/Lug Hole Quantity: 6
Surface Type: Slotted X Drilled
Vane Style: Straight

适用车型

CHEVROLET (3)

GMC (3)

OE号码

品牌	号码
OE	227-66041*
