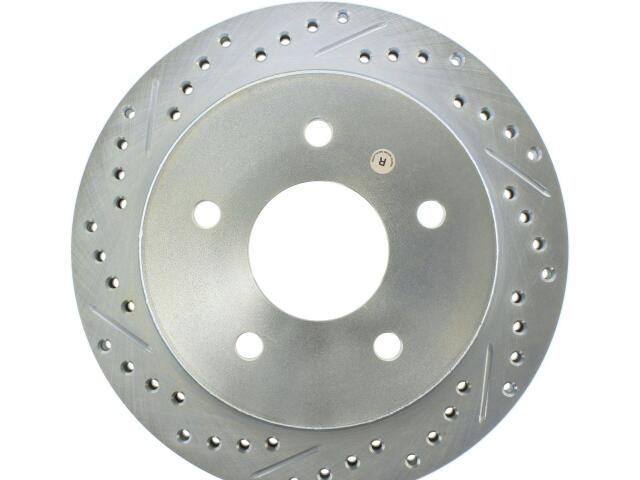

Rotor
CENTRIC : 22766036R

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.783
Center Hole Diameter (MM): 70.700
Disc Mounting: Floating / DIH
Discard Thickness (IN): 0.728
Discard Thickness (MM): 18.500
Max PB Drum Dia in: 7.539
Max PB Drum Dia mm: 191.500
Mounting Bolt Hole Circle Diameter (IN): 4.748
Mounting Bolt Hole Circle Diameter (MM): 120.600
Nominal Drum Diameter (IN): 7.484
Nominal Drum Diameter (MM): 190.100
Nominal Thickness (IN): 0.787
Nominal Thickness (MM): 20.000
Outside Diameter (IN): 11.614
Outside Diameter (MM): 295.000
Overall Height (IN): 3.740
Overall Height (MM): 95.000
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.520
Stud/Lug Hole Diameter (MM): 13.200
Stud/Lug Hole Quantity: 5
Surface Type: Slotted X Drilled
Vane Style: Straight

适用车型

CHEVROLET (1)

OE号码

品牌	号码
OE	227.66036*
