CENTRIC
22765135R

第三方数据CENTRIC : 22765135R

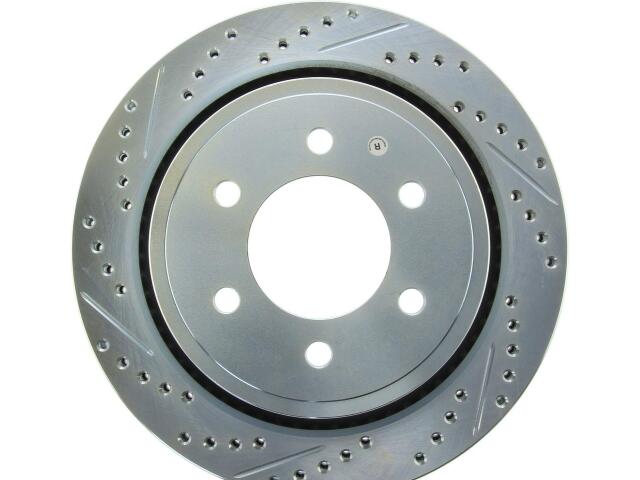

Rotor
CENTRIC : 22765135R

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 3.547
Center Hole Diameter (MM): 90.100
Disc Mounting: Floating / DIH
Discard Thickness (IN): 0.906
Discard Thickness (MM): 23.000
Max PB Drum Dia in: 8.157
Max PB Drum Dia mm: 207.200
Mounting Bolt Hole Circle Diameter (IN): 5.315
Mounting Bolt Hole Circle Diameter (MM): 135.000
Nominal Drum Diameter (IN): 8.110
Nominal Drum Diameter (MM): 206.000
Nominal Thickness (IN): 0.984
Nominal Thickness (MM): 25.000
Outside Diameter (IN): 13.709
Outside Diameter (MM): 348.200
Overall Height (IN): 3.157
Overall Height (MM): 80.200
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.618
Stud/Lug Hole Diameter (MM): 15.700
Stud/Lug Hole Quantity: 6
Surface Type: Slotted X Drilled
Vane Style: Straight

适用车型

FORD (1)

F-150 (7)

2.7L V6 Turbocharged (4)

3.3L V6 (1)

3.5L V6 (3)

3.5L V6 Turbocharged (7)

3.7L V6 (3)

5.0L V8 (7)

6.2L V8 (3)

OE号码

品牌	号码
OE	227.65135*
