CENTRIC
22765097R

第三方数据CENTRIC : 22765097R

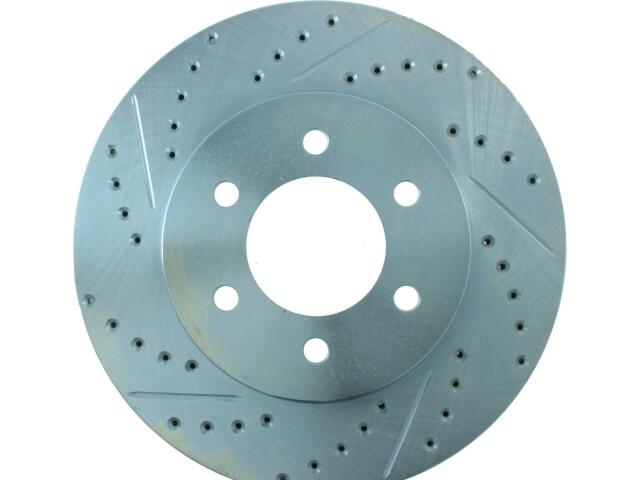

Rotor
CENTRIC : 22765097R

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 3.551
Center Hole Diameter (MM): 90.200
Disc Mounting: Floating
Discard Thickness (IN): 1.063
Discard Thickness (MM): 27.000
Mounting Bolt Hole Circle Diameter (IN): 5.315
Mounting Bolt Hole Circle Diameter (MM): 135.000
Nominal Thickness (IN): 1.181
Nominal Thickness (MM): 30.000
Outside Diameter (IN): 12.992
Outside Diameter (MM): 330.000
Overall Height (IN): 1.890
Overall Height (MM): 48.000
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.630
Stud/Lug Hole Diameter (MM): 16.000
Stud/Lug Hole Quantity: 6
Surface Type: Slotted X Drilled
Vane Style: Straight

适用车型

FORD (1)

LINCOLN (1)

OE号码

品牌	号码
OE	227.65097*
