CENTRIC
22765086R

第三方数据CENTRIC : 22765086R

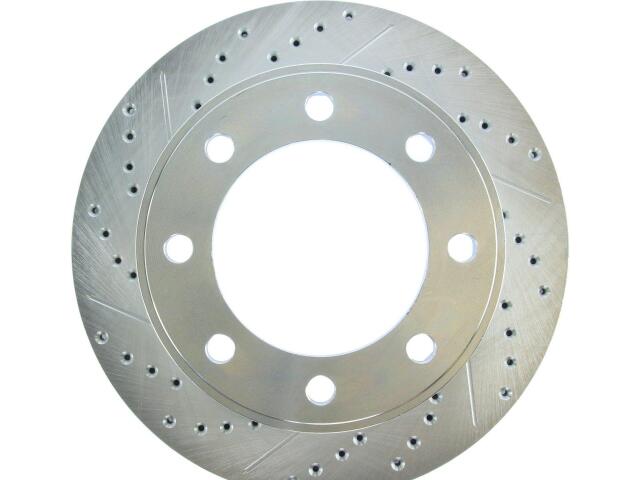

Rotor
CENTRIC : 22765086R

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 5.087
Center Hole Diameter (MM): 129.200
Disc Mounting: Floating
Discard Thickness (IN): 1.417
Discard Thickness (MM): 36.000
Mounting Bolt Hole Circle Diameter (IN): 6.693
Mounting Bolt Hole Circle Diameter (MM): 170.000
Nominal Thickness (IN): 1.496
Nominal Thickness (MM): 38.000
Outside Diameter (IN): 13.031
Outside Diameter (MM): 331.000
Overall Height (IN): 3.917
Overall Height (MM): 99.500
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.638
Stud/Lug Hole Diameter (MM): 16.200
Stud/Lug Hole Quantity: 8
Surface Type: Slotted X Drilled
Vane Style: Pillar

适用车型

FORD (1)

OE号码

品牌	号码
OE	227-65086*
