CENTRIC
22762101R

第三方数据CENTRIC : 22762101R

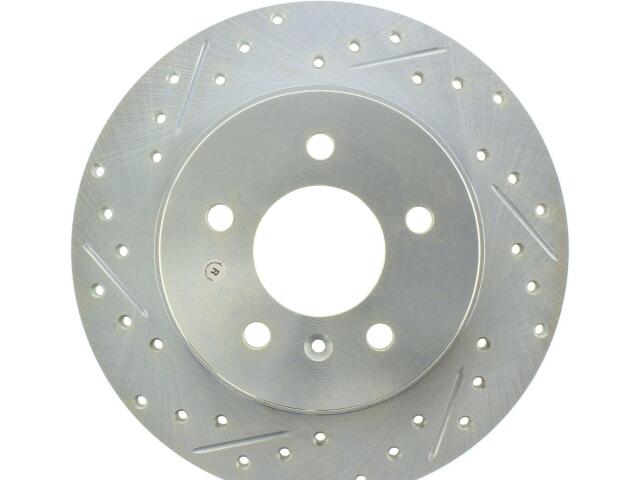

Rotor
CENTRIC : 22762101R

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.783
Center Hole Diameter (MM): 70.700
Disc Mounting: Floating
Discard Thickness (IN): 0.413
Discard Thickness (MM): 10.500
Mounting Bolt Hole Circle Diameter (IN): 4.528
Mounting Bolt Hole Circle Diameter (MM): 115.000
Nominal Thickness (IN): 0.472
Nominal Thickness (MM): 12.000
Outside Diameter (IN): 11.496
Outside Diameter (MM): 292.000
Overall Height (IN): 1.996
Overall Height (MM): 50.700
Solid Or Vented Type Rotor: Solid
Stud/Lug Hole Diameter (IN): 0.563
Stud/Lug Hole Diameter (MM): 14.300
Stud/Lug Hole Quantity: 5
Surface Type: Slotted X Drilled

适用车型

BUICK (1)

CADILLAC (1)

OE号码

品牌	号码
OE	227.62101*
