CENTRIC
22762057L

第三方数据CENTRIC : 22762057L

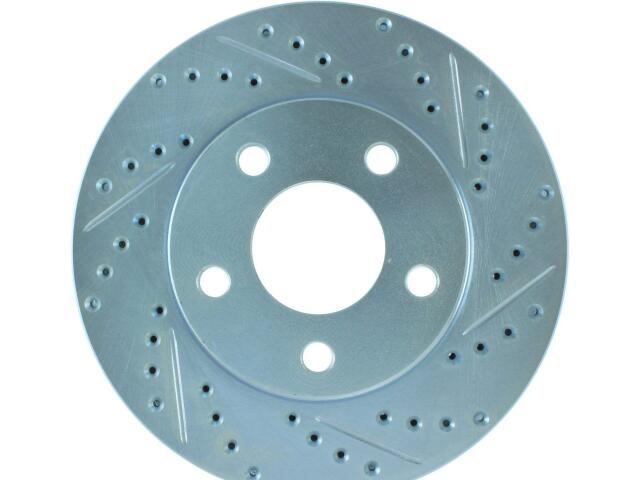

Rotor
CENTRIC : 22762057L

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.783
Center Hole Diameter (MM): 70.700
Disc Mounting: Floating
Discard Thickness (IN): 1.223
Discard Thickness (MM): 31.060
Mounting Bolt Hole Circle Diameter (IN): 4.646
Mounting Bolt Hole Circle Diameter (MM): 118.000
Nominal Thickness (IN): 1.272
Nominal Thickness (MM): 32.300
Outside Diameter (IN): 10.945
Outside Diameter (MM): 278.000
Overall Height (IN): 2.047
Overall Height (MM): 52.000
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.638
Stud/Lug Hole Diameter (MM): 16.200
Stud/Lug Hole Quantity: 5
Surface Type: Slotted X Drilled
Vane Style: Straight

适用车型

BUICK (2)

CHEVROLET (1)

PONTIAC (2)

OE号码

品牌	号码
OE	227.62057*
