CENTRIC
22762045L

第三方数据CENTRIC : 22762045L

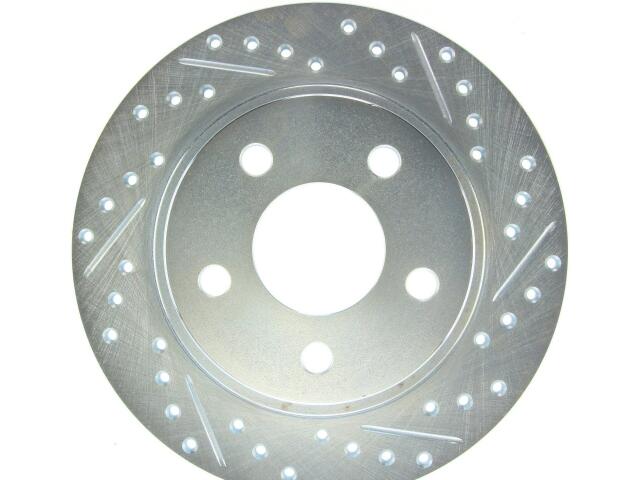

Rotor
CENTRIC : 22762045L

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.783
Center Hole Diameter (MM): 70.700
Disc Mounting: Floating
Discard Thickness (IN): 0.354
Discard Thickness (MM): 9.000
Mounting Bolt Hole Circle Diameter (IN): 4.646
Mounting Bolt Hole Circle Diameter (MM): 118.000
Nominal Thickness (IN): 0.433
Nominal Thickness (MM): 11.000
Outside Diameter (IN): 11.071
Outside Diameter (MM): 281.200
Overall Height (IN): 1.516
Overall Height (MM): 38.500
Solid Or Vented Type Rotor: Solid
Stud/Lug Hole Diameter (IN): 0.516
Stud/Lug Hole Diameter (MM): 13.100
Stud/Lug Hole Quantity: 5
Surface Type: Slotted X Drilled

适用车型

BUICK (2)

PONTIAC (1)

OE号码

品牌	号码
OE	227.62045*
