CENTRIC
22745084R

第三方数据CENTRIC : 22745084R

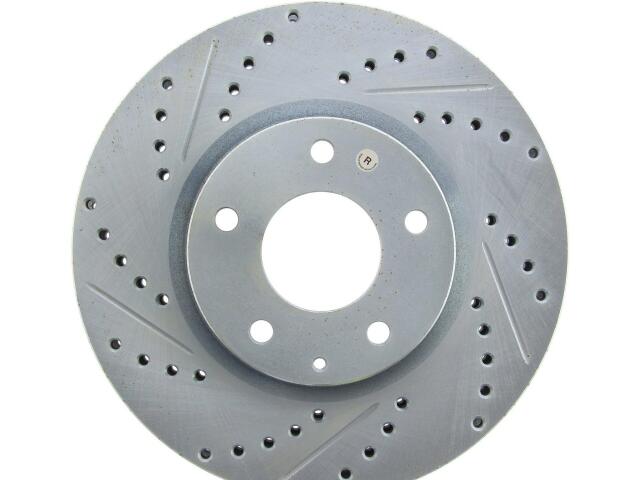

Rotor
CENTRIC : 22745084R

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.677
Center Hole Diameter (MM): 68.000
Disc Mounting: Floating
Discard Thickness (IN): 1.024
Discard Thickness (MM): 26.000
Mounting Bolt Hole Circle Diameter (IN): 4.500
Mounting Bolt Hole Circle Diameter (MM): 114.300
Nominal Thickness (IN): 1.102
Nominal Thickness (MM): 28.000
Notes: Similar to 120.45094
Outside Diameter (IN): 11.681
Outside Diameter (MM): 296.700
Overall Height (IN): 2.028
Overall Height (MM): 51.500
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.512
Stud/Lug Hole Diameter (MM): 13.000
Stud/Lug Hole Quantity: 5
Surface Type: Slotted X Drilled
Vane Style: Straight

适用车型

MAZDA (2)

OE号码

品牌	号码
OE	227.45084*
