CENTRIC
22745078R

第三方数据CENTRIC : 22745078R

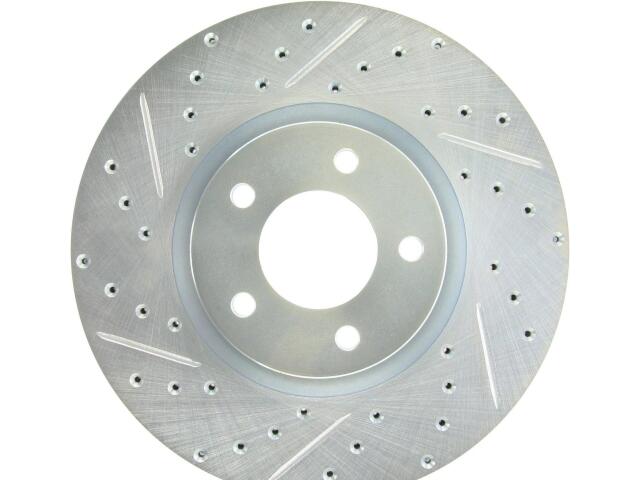

Rotor
CENTRIC : 22745078R

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.835
Center Hole Diameter (MM): 72.000
Disc Mounting: Floating
Discard Thickness (IN): 0.906
Discard Thickness (MM): 23.000
Mounting Bolt Hole Circle Diameter (IN): 4.500
Mounting Bolt Hole Circle Diameter (MM): 114.300
Nominal Thickness (IN): 0.984
Nominal Thickness (MM): 25.000
Outside Diameter (IN): 12.598
Outside Diameter (MM): 320.000
Overall Height (IN): 1.909
Overall Height (MM): 48.500
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.543
Stud/Lug Hole Diameter (MM): 13.800
Stud/Lug Hole Quantity: 5
Surface Type: Slotted X Drilled
Vane Style: Straight

适用车型

MAZDA (1)

OE号码

品牌	号码
OE	227.45078*
