CENTRIC
22744175R

第三方数据CENTRIC : 22744175R

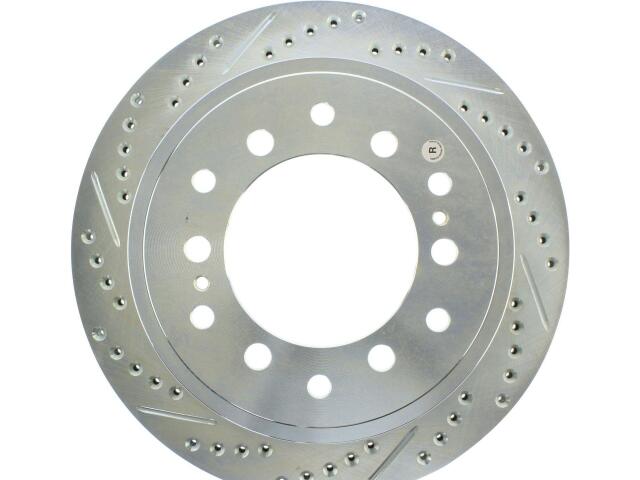

Rotor
CENTRIC : 22744175R

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 4.252
Center Hole Diameter (MM): 108.000
Disc Mounting: Floating / DIH
Discard Thickness (IN): 0.630
Discard Thickness (MM): 16.000
Hat ID in: 8.248
Hat ID mm: 209.500
Max PB Drum Dia in: 8.307
Max PB Drum Dia mm: 211.000
Mounting Bolt Hole Circle Diameter (IN): 5.500
Mounting Bolt Hole Circle Diameter (MM): 139.700
Nominal Drum Diameter (IN): 8.256
Nominal Drum Diameter (MM): 209.700
Nominal Thickness (IN): 0.709
Nominal Thickness (MM): 18.000
Outside Diameter (IN): 12.287
Outside Diameter (MM): 312.100
Overall Height (IN): 2.681
Overall Height (MM): 68.100
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.567
Stud/Lug Hole Diameter (MM): 14.400
Stud/Lug Hole Quantity: 6
Surface Type: Slotted X Drilled
Vane Style: Straight

适用车型

LEXUS (1)

TOYOTA (2)

OE号码

品牌	号码
OE	227.44175*
