CENTRIC
22742099L

第三方数据CENTRIC : 22742099L

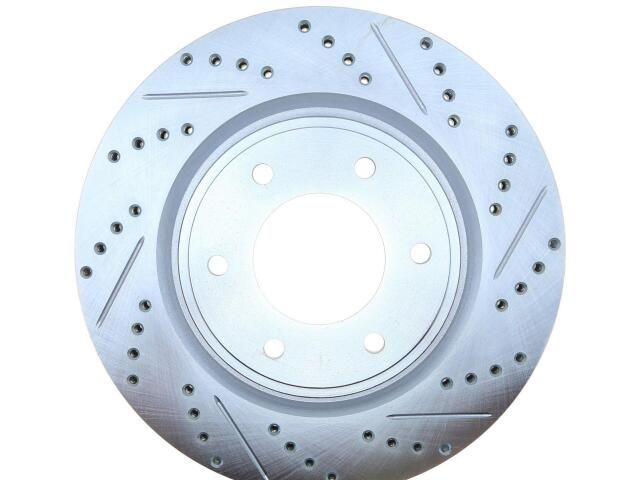

Rotor
CENTRIC : 22742099L

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 3.547
Center Hole Diameter (MM): 90.100
Disc Mounting: Floating
Discard Thickness (IN): 1.122
Discard Thickness (MM): 28.500
Hat ID in: 7.276
Hat ID mm: 184.800
Mounting Bolt Hole Circle Diameter (IN): 5.500
Mounting Bolt Hole Circle Diameter (MM): 139.700
Nominal Thickness (IN): 1.181
Nominal Thickness (MM): 30.000
Outside Diameter (IN): 13.780
Outside Diameter (MM): 350.000
Overall Height (IN): 1.697
Overall Height (MM): 43.100
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.531
Stud/Lug Hole Diameter (MM): 13.500
Stud/Lug Hole Quantity: 6
Surface Type: Slotted X Drilled
Vane Style: Straight

适用车型

NISSAN (2)

INFINITI (1)

OE号码

品牌	号码
OE	227.42099*
