CENTRIC
22742092R

第三方数据CENTRIC : 22742092R

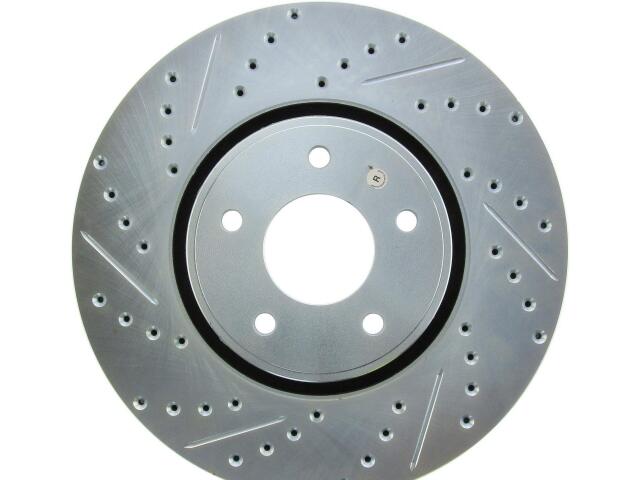

Rotor
CENTRIC : 22742092R

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.677
Center Hole Diameter (MM): 68.000
Disc Mounting: Floating
Discard Thickness (IN): 1.260
Discard Thickness (MM): 32.000
Mounting Bolt Hole Circle Diameter (IN): 4.500
Mounting Bolt Hole Circle Diameter (MM): 114.300
Nominal Thickness (IN): 1.339
Nominal Thickness (MM): 34.000
Outside Diameter (IN): 12.598
Outside Diameter (MM): 320.000
Overall Height (IN): 1.937
Overall Height (MM): 49.200
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.500
Stud/Lug Hole Diameter (MM): 12.700
Stud/Lug Hole Quantity: 5
Surface Type: Slotted X Drilled
Vane Style: Straight

适用车型

INFINITI (4)

OE号码

品牌	号码
OE	227.42092*
