CENTRIC
22742076R

第三方数据CENTRIC : 22742076R

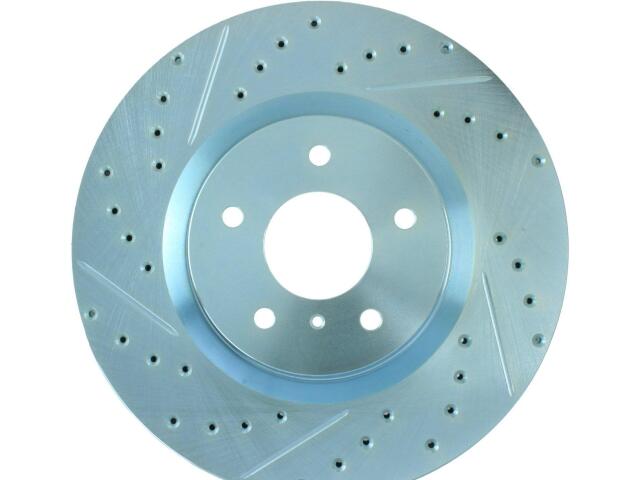

Rotor
CENTRIC : 22742076R

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.677
Center Hole Diameter (MM): 68.000
Disc Mounting: Floating
Discard Thickness (IN): 1.118
Discard Thickness (MM): 28.400
Mounting Bolt Hole Circle Diameter (IN): 4.500
Mounting Bolt Hole Circle Diameter (MM): 114.300
Nominal Thickness (IN): 1.181
Nominal Thickness (MM): 30.000
Outside Diameter (IN): 12.756
Outside Diameter (MM): 324.000
Overall Height (IN): 1.933
Overall Height (MM): 49.100
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.500
Stud/Lug Hole Diameter (MM): 12.700
Stud/Lug Hole Quantity: 5
Surface Type: Slotted X Drilled
Vane Style: Pillar

适用车型

NISSAN (1)

OE号码

品牌	号码
OE	227.42076*
