CENTRIC
22742073R

第三方数据CENTRIC : 22742073R

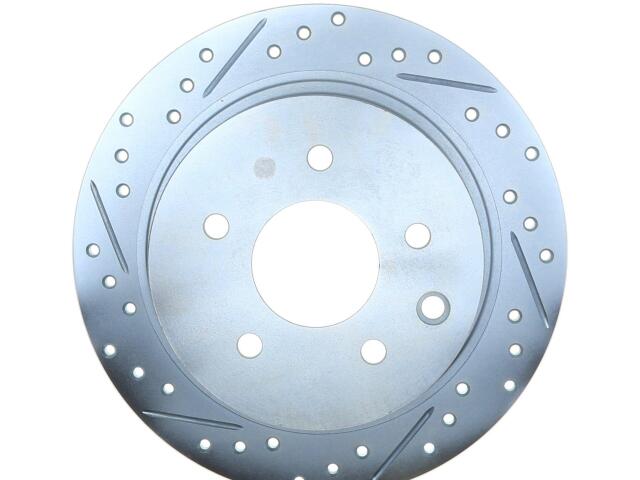

Rotor
CENTRIC : 22742073R

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.677
Center Hole Diameter (MM): 68.000
Disc Mounting: Floating / DIH
Discard Thickness (IN): 0.315
Discard Thickness (MM): 8.000
Hat ID in: 6.157
Hat ID mm: 156.400
Mounting Bolt Hole Circle Diameter (IN): 4.500
Mounting Bolt Hole Circle Diameter (MM): 114.300
Nominal Drum Diameter (IN): 6.724
Nominal Drum Diameter (MM): 170.800
Nominal Thickness (IN): 0.354
Nominal Thickness (MM): 9.000
Outside Diameter (IN): 11.484
Outside Diameter (MM): 291.700
Overall Height (IN): 2.441
Overall Height (MM): 62.000
Solid Or Vented Type Rotor: Solid
Stud/Lug Hole Diameter (IN): 0.508
Stud/Lug Hole Diameter (MM): 12.900
Stud/Lug Hole Quantity: 5
Surface Type: Slotted X Drilled

适用车型

NISSAN (4)

JUKE (1)

SENTRA (3)

ALTIMA (3)

2.5L L4 (13)

2.5L L4 ELECTRIC/GAS (5)

3.5L V6 (13)

MAXIMA (1)

RENAULT (1)

OE号码

品牌	号码
OE	227.42073*
