CENTRIC
22740042R

第三方数据CENTRIC : 22740042R

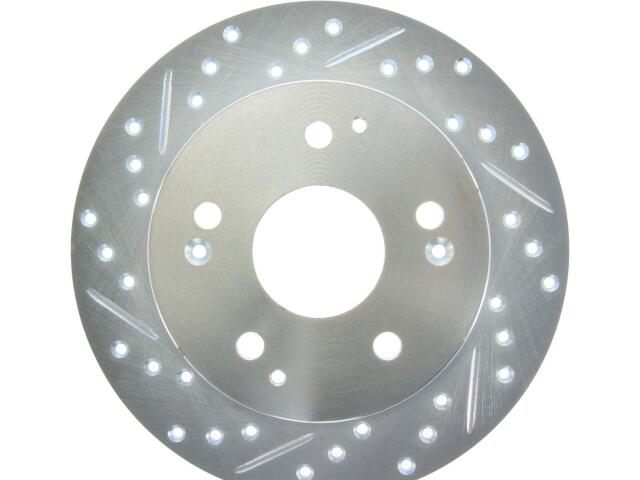

Rotor
CENTRIC : 22740042R

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.528
Center Hole Diameter (MM): 64.200
Disc Mounting: Floating
Discard Thickness (IN): 0.315
Discard Thickness (MM): 8.000
Mounting Bolt Hole Circle Diameter (IN): 4.500
Mounting Bolt Hole Circle Diameter (MM): 114.300
Nominal Thickness (IN): 0.354
Nominal Thickness (MM): 9.000
Outside Diameter (IN): 10.224
Outside Diameter (MM): 259.700
Overall Height (IN): 1.902
Overall Height (MM): 48.300
Solid Or Vented Type Rotor: Solid
Stud/Lug Hole Diameter (IN): 0.496
Stud/Lug Hole Diameter (MM): 12.600
Stud/Lug Hole Quantity: 5
Surface Type: Slotted X Drilled

适用车型

HONDA (1)

ACURA (1)

OE号码

品牌	号码
OE	227.40042*
