CENTRIC
22734136R

第三方数据CENTRIC : 22734136R

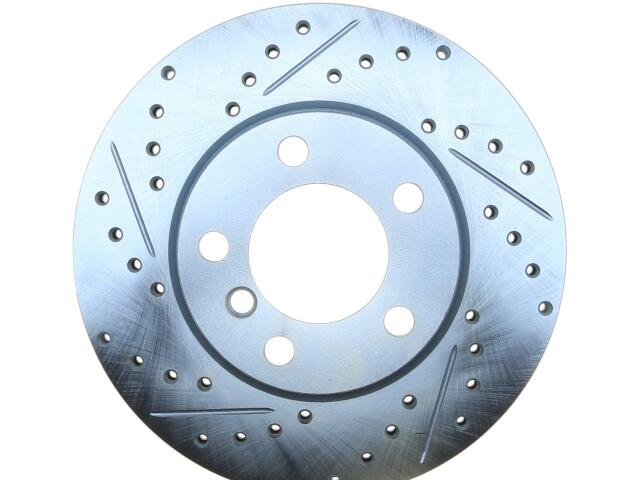

Rotor
CENTRIC : 22734136R

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 3.110
Center Hole Diameter (MM): 79.000
Disc Mounting: Floating
Discard Thickness (IN): 0.803
Discard Thickness (MM): 20.400
Hat ID in: 5.835
Hat ID mm: 148.200
Mounting Bolt Hole Circle Diameter (IN): 4.724
Mounting Bolt Hole Circle Diameter (MM): 120.000
Nominal Thickness (IN): 0.866
Nominal Thickness (MM): 22.000
Outside Diameter (IN): 11.575
Outside Diameter (MM): 294.000
Overall Height (IN): 1.776
Overall Height (MM): 45.100
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.654
Stud/Lug Hole Diameter (MM): 16.600
Stud/Lug Hole Quantity: 5
Surface Type: Slotted X Drilled
Vane Style: Straight

适用车型

MINI (2)

OE号码

品牌	号码
OE	227.34136*
