CENTRIC
12539052

第三方数据CENTRIC : 12539052

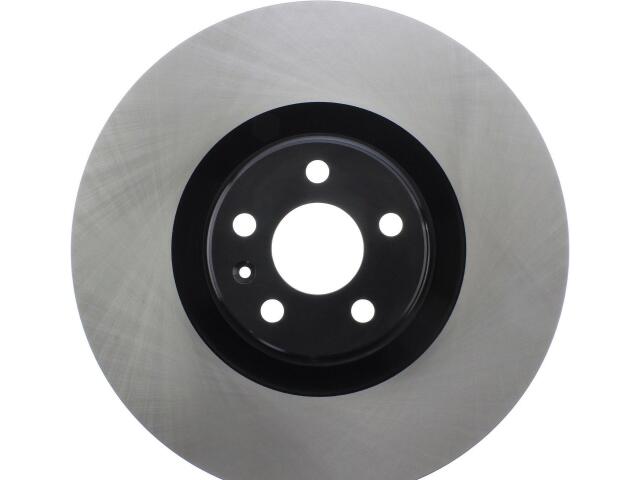

Rotor
CENTRIC : 12539052

ABS Sensor Ring Included: No
Bolt Circle Diameter (IN): 4.252
Bolt Circle Diameter (MM): 108.000
Disc Mounting: Floating
Discard Thickness (IN): 1.083
Discard Thickness (MM): 27.500
Hat Finish: Coated
Hat ID (IN): 5.504
Hat ID (MM): 139.800
Misc Holes: 1
Nominal Thickness (IN): 1.181
Nominal Thickness (MM): 30.000
OEM Vane Count: 160
Outside Diameter (IN): 14.409
Outside Diameter (MM): 366.000
Overall Height (IN): 1.898
Overall Height (MM): 48.200
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth
Vane Style: Pillar

适用车型

VOLVO (2)

XC60 (2)

XC90 (2)

参考号

厂商	号码
ATE/PREMIUMONE	SP0005*
ATE/PREMIUMONE	43024*
AUTOPART INTERNATIONAL	1407-54945*
AUTOPART INTERNATIONAL	1427-54945*
AUTOZONE/DURALAST CONNECTORS	4591*
CARQUEST PLATINUM ROTORS	YH549452*
CERTIFIED BRAKE DRUMS & ROTORS	4591*

厂商	号码
DFC	9002705*
FVP AND DURAGO BRAKE BUNDLE	FVP004655FV*
PERFECT STOP HIGH CARBON	PS4422022H*
POSI QUIET METALLIC AND FVP ROTOR BUNDLE	FVP008730CE*
POWERSTOP Z17 AND FVP ROTOR BRAKE BUNDLE	FVP013525PS*
QUALIS	4591*

厂商	号码
ULTRA HC	UR00512*
ULTRAHC1000 BRAKE PADS	662202*
WAGNER BRAKE	BD180782*
WINHERE BRAKE PARTS INC.	UR00512*
WINHERE BRAKE PARTS INC.	662202*
WINSTOP BRAKE ROTORS AND DRUMS	WS25076*

OE号码

品牌	号码
OE	125.3905*

品牌	号码
OEM PART NUMBER	3140056*
