CENTRIC
12199162

第三方数据CENTRIC : 12199162

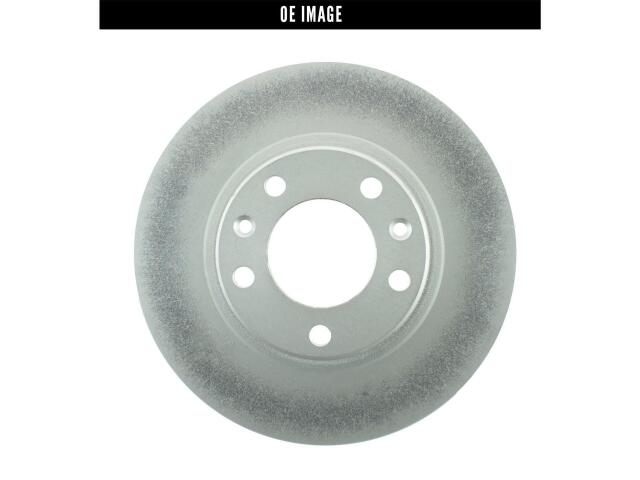

Rotor
CENTRIC : 12199162

ABS Sensor Ring Included: No
Bolt Circle Diameter (IN): 4.252
Bolt Circle Diameter (MM): 108.000
Disc Mounting: Floating
Discard Thickness (IN): 0.394
Discard Thickness (MM): 10.000
Hat ID (IN): 5.197
Hat ID (MM): 132.000
Misc Holes: 2
Nominal Thickness (IN): 0.472
Nominal Thickness (MM): 12.000
Outside Diameter (IN): 10.547
Outside Diameter (MM): 267.900
Overall Height (IN): 1.378
Overall Height (MM): 35.000
Solid Or Vented Type Rotor: Solid
Surface Type: Smooth

适用车型

PEUGEOT (1)
