CENTRIC
12169003

第三方数据CENTRIC : 12169003

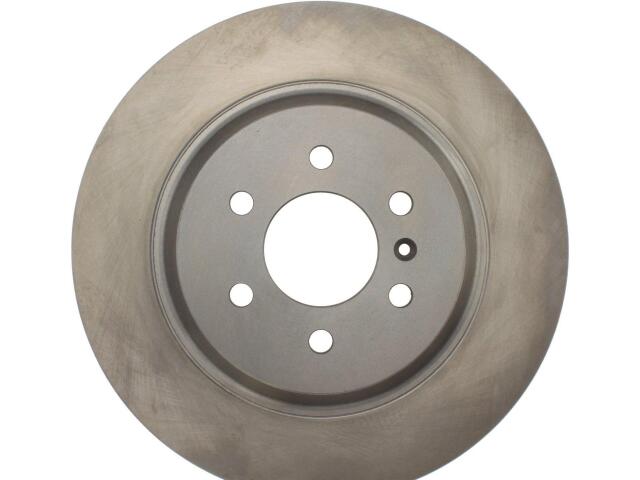

Rotor
CENTRIC : 12169003

ABS Sensor Ring Included: No
Bolt Circle Diameter (IN): 4.520
Bolt Circle Diameter (MM): 114.800
Disc Mounting: Floating
Discard Thickness (IN): 0.413
Discard Thickness (MM): 10.500
Hat ID (IN): 6.835
Hat ID (MM): 173.600
Misc Holes: 1
Nominal Thickness (IN): 0.472
Nominal Thickness (MM): 12.000
Outside Diameter (IN): 12.736
Outside Diameter (MM): 323.500
Overall Height (IN): 1.437
Overall Height (MM): 36.500
Solid Or Vented Type Rotor: Solid
Surface Type: Smooth

适用车型

VPG (1)

MOBILITY VENTURES (1)

参考号

厂商	号码
BEST BRAKES USA	GP31806*
CERTIFIED BRAKE DRUMS & ROTORS	4128*
DFC	6004900*

厂商	号码
MAGMA BRAKES	PMR22526*
QUALIS	4128*

厂商	号码
RAYBESTOS	980994*
RAYBESTOS UNBRANDED	980994*

OE号码

品牌	号码
OE	121.6900*
