CENTRIC
12162175

第三方数据CENTRIC : 12162175

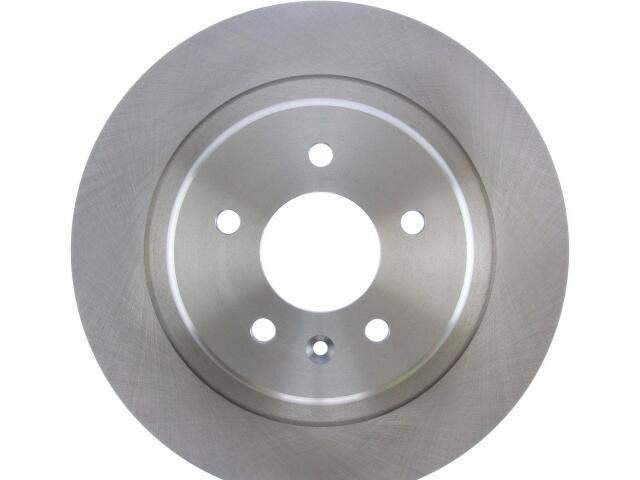

Rotor
CENTRIC : 12162175

ABS Sensor Ring Included: No
Bolt Circle Diameter (IN): 4.528
Bolt Circle Diameter (MM): 115.000
Disc Mounting: Floating
Discard Thickness (IN): 0.394
Discard Thickness (MM): 10.000
Hat ID (IN): 6.772
Hat ID (MM): 172.000
Misc Holes: 1
Nominal Thickness (IN): 0.472
Nominal Thickness (MM): 12.000
Outside Diameter (IN): 12.402
Outside Diameter (MM): 315.000
Overall Height (IN): 1.772
Overall Height (MM): 45.000
Solid Or Vented Type Rotor: Solid
Surface Type: Smooth

适用车型

BUICK (1)

OE号码

品牌	号码
OE	121.6217*
